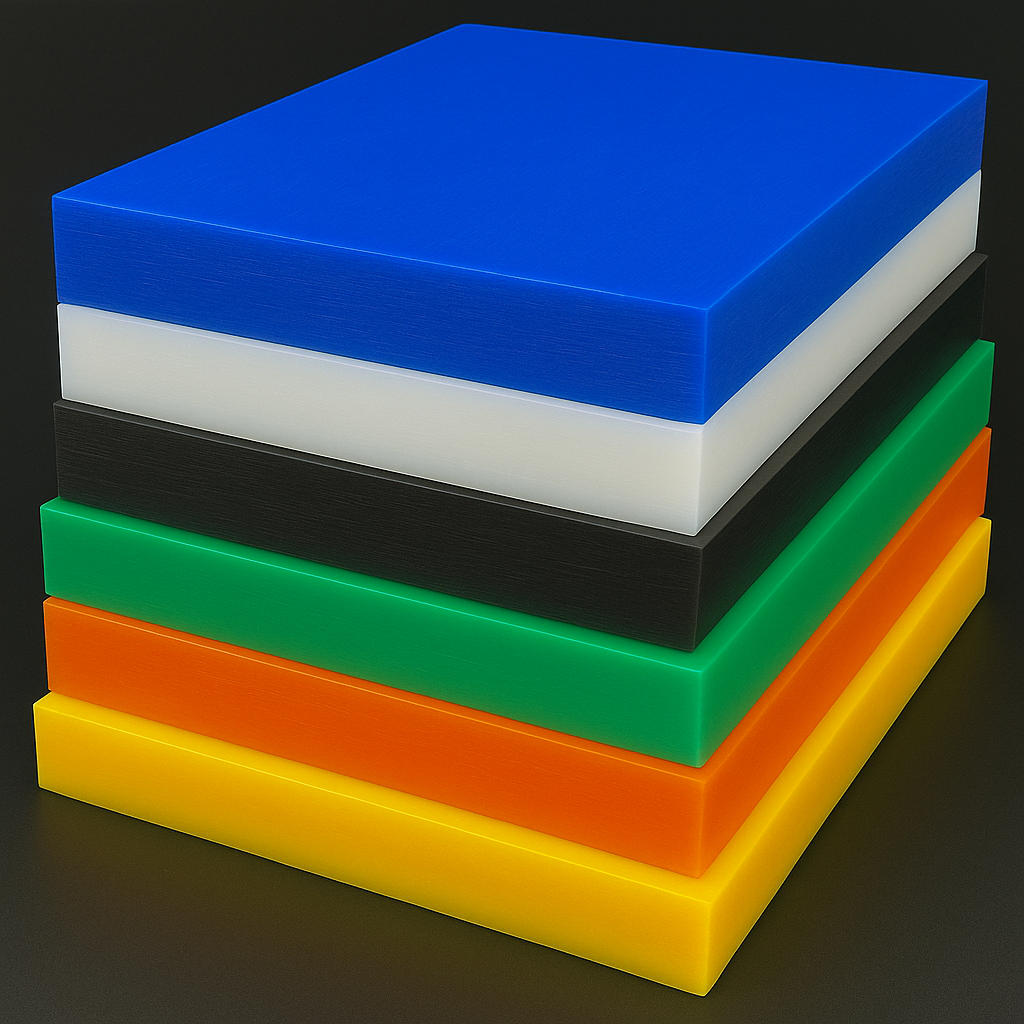

UHMWPE Sheets – Ultra High Molecular Weight Polyethylene Boards
Our UHMWPE (Ultra High Molecular Weight Polyethylene) sheets are engineered for exceptional wear resistance, an extremely low coefficient of friction, and outstanding impact strength. With a molecular weight ranging from 3 to 5 million g/mol, UHMWPE is one of the most durable thermoplastics available, making it ideal for long-term use in demanding industrial environments.
Key Features
Exceptional Wear Resistance – Significantly extends service life in high-friction applications
Low Coefficient of Friction – Naturally self-lubricating, requires no external lubrication
High Impact Strength – Withstands repeated impacts without cracking or breaking
Corrosion & Chemical Resistance – Performs well in harsh chemical and marine environments
Moisture-Proof & Non-Stick – Does not absorb water, suitable for wet and food-grade environments
Wide Temperature Range – Reliable performance from -269°C to +80°C
Applications
Conveyor chain guides, wear strips, and belt supports
Truck bed and hopper liners
Marine dock fenders and bumpers
Synthetic ice rinks and sports sliding surfaces
Chutes, hoppers, and material handling equipment
Cutting boards and food processing work surfaces
Technical Specifications
Density: 0.93 – 0.94 g/cm³
Molecular Weight: 3,000,000 – 5,000,000 g/mol
Tensile Strength: 21 – 23 MPa
Elongation at Break: 300%
Notched Impact Strength: No break
Shore Hardness (D): 65 – 70
Water Absorption: ＜0.01%
Operating Temperature: -269°C to +80°C
Available Sizes & Colors
Thickness: 5 mm – 120 mm
Standard Sheet Sizes: 1000 × 2000 mm, 1220 × 2440 mm, 1250 × 3000 mm, 2000 × 4000 mm
Colors: White, Black, Green, Blue, Red (custom colors available upon request)
Custom Machining Service
We provide CNC cutting, drilling, milling, and welding services for UHMWPE components according to customer drawings. OEM branding and customized packaging are available to meet specific project requirements.
Why Choose Us
Over 15 years of manufacturing experience in UHMWPE and engineering plastics
Strict quality control and compliance with international standards
Competitive pricing and short lead times
Global export capability with reliable logistics partners
